Product details

Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 550 x 550 x 550mm.
Use 250mm flanges (inlet / outlet) for this very quiet product thanks to its S-vent motor.

Supplied complete (with anti-vibration suspension rings) and ready to plug in.

Technical specifications:
Sound level: 42.4 dB
Housing dimensions: 550 x 550 x 550 mm
Flow rate: 3250m3/h
Inlet / outlet flange: 2 x 250 mm + 1 x 315 mm
Maximum power: 1100 W
Minimum power: 400 W
Maximum current: 5.3 A
Minimum current: 2.3 A

1 year warranty

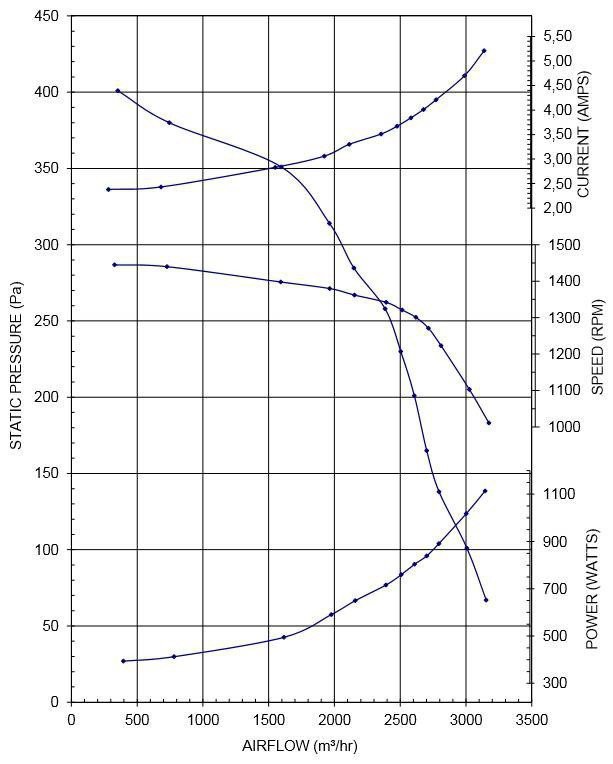

Load diagram :

datasheet

Name Soundproof box with air extractor 3250 m3/h - Flange 2x250mm - Winflex
Brand Winflex
Eco-contribution (€) 5
Air flow 1501 to 7000 m3/h
Output diameter (mm) 315
Inlet diameter (mm) 250
Country of manufacture NETHERLANDS
