Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
extractor-air-insonorise-1500-m3-hour
extractor-air-insonorise-1500-m3-hour
extractor-air-insonorise-1500-m3-hour
extractor-air-insonorise-1500-m3-hour
Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
extractor-air-insonorise-1500-m3-hour
extractor-air-insonorise-1500-m3-hour
Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex

Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex

€325.00
Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
€325.00
Loyalty
By buying this product you can collect up to 33 loyalty point(s), which can be converted into a voucher of €6.60.
Free delivery from €169 depending on delivery country
At home from : Saturday 27/07/2024 see details

Product details

Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 450 x 450 x 450mm.
Use 250mm flanges (inlet / outlet) for this very quiet product thanks to its S-vent motor.

Supplied complete (with anti-vibration suspension rings) and ready to plug in.

Technical specifications:
Sound level: 36.7 dB
Housing dimensions: 450 x 450 x 450 mm
Flow rate: 1500m3/h
Inlet / outlet flange: 250 mm
Maximum power: 330 W
Minimum power: 150 W
Maximum current: 1.40 A
Minimum current: 0.77 A

1 year warranty

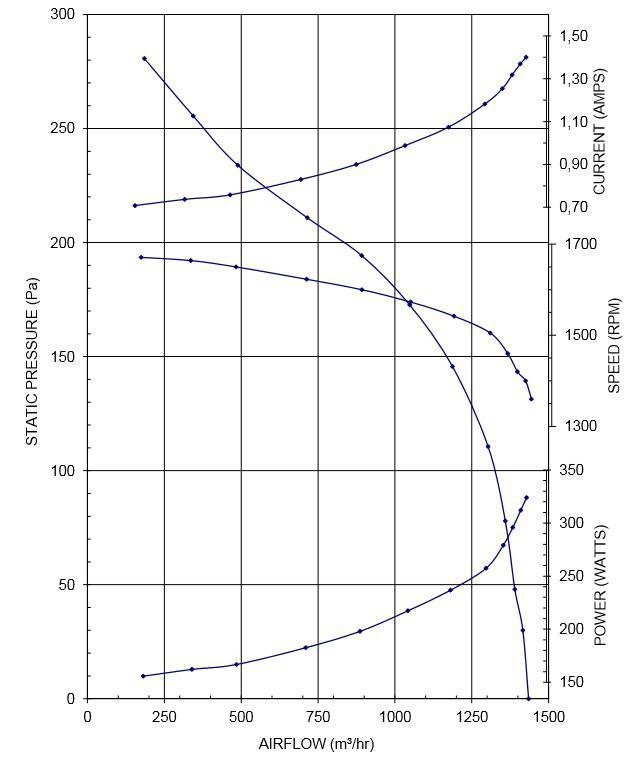

Load diagram :

datasheet

Name Soundproof box with air extractor 1500 m3/h - Flange 250mm - Winflex
Brand Winflex
Eco-contribution (€) 2,5
Air flow 801 to 1500 m3/h
Output diameter (mm) 250
Inlet diameter (mm) 250
Country of manufacture NETHERLANDS
