Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
box-insonorise-winflex-for-extractor-200-mm
box-insonorise-winflex-for-extractor-200-mm
box-insonorise-winflex-for-extractor-200-mm
box-insonorise-winflex-for-extractor-200-mm
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
box-insonorise-winflex-for-extractor-200-mm
box-insonorise-winflex-for-extractor-200-mm
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex

Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex

€180.00
€225.00
Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
€180.00
€225.00
Loyalty
By buying this product you can collect up to 18 loyalty point(s), which can be converted into a voucher of €3.60.
Free delivery from €169 depending on delivery country
At home from : Sunday 21/07/2024 see details

Product details

Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 350 x 350 x 350mm.
Use 200mm flanges (inlet / outlet) for this very quiet product thanks to its S-vent motor.

Supplied complete (with anti-vibration suspension rings) and ready to plug in.

Technical specifications:
Sound level: 31.9 dB
Housing dimensions: 350 x 350 x 350 mm
Flow rate: 750m3/h
Inlet / outlet flange: 200 mm
Maximum power: 160 W
Minimum power: 60 W
Maximum current: 1.2 A
Minimum current: 0.73 A

1 year warranty

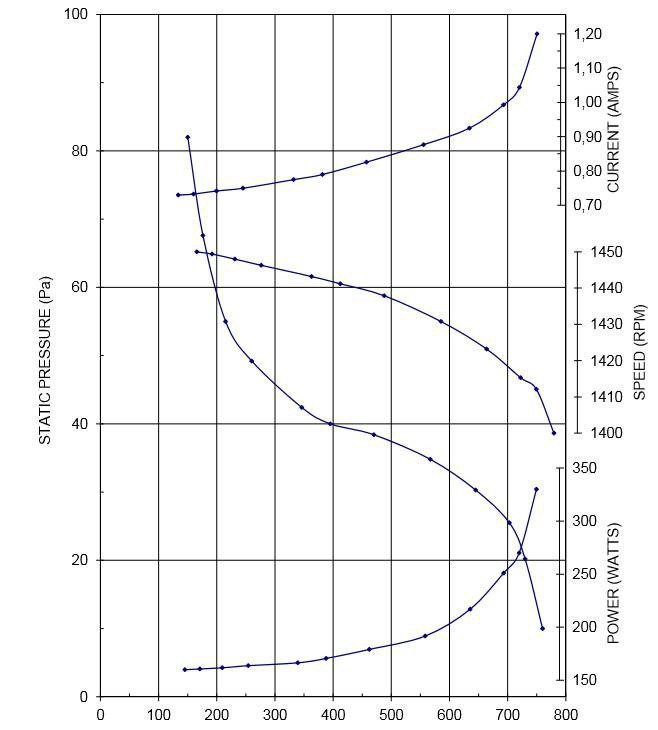

Load diagram :

datasheet

Name Soundproof box with air extractor 750 m3/h - Flange 200mm - Winflex
Brand Winflex
Eco-contribution (€) 1,75
Air flow 401 to 800 m3/h
Output diameter (mm) 200
Inlet diameter (mm) 200
Country of manufacture NETHERLANDS
Tri des déchets

Notice
