Bar LED with interior canopy - 120W - ICL-300 - ThinkGrow LED

Bar LED for intra-canopy lighting ThinkGrow ICL-300 - 120W, optimum performance

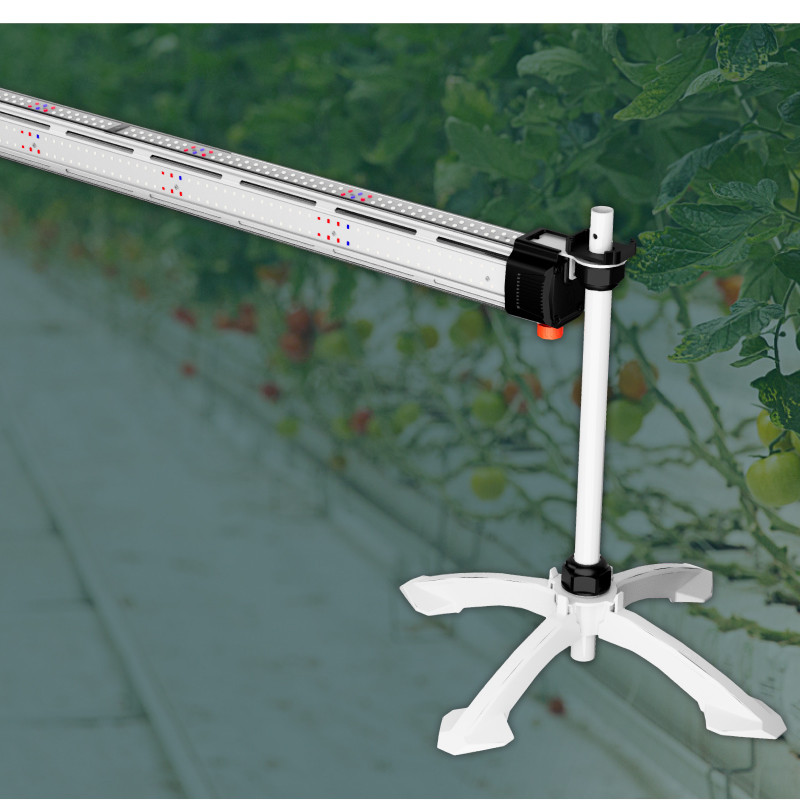

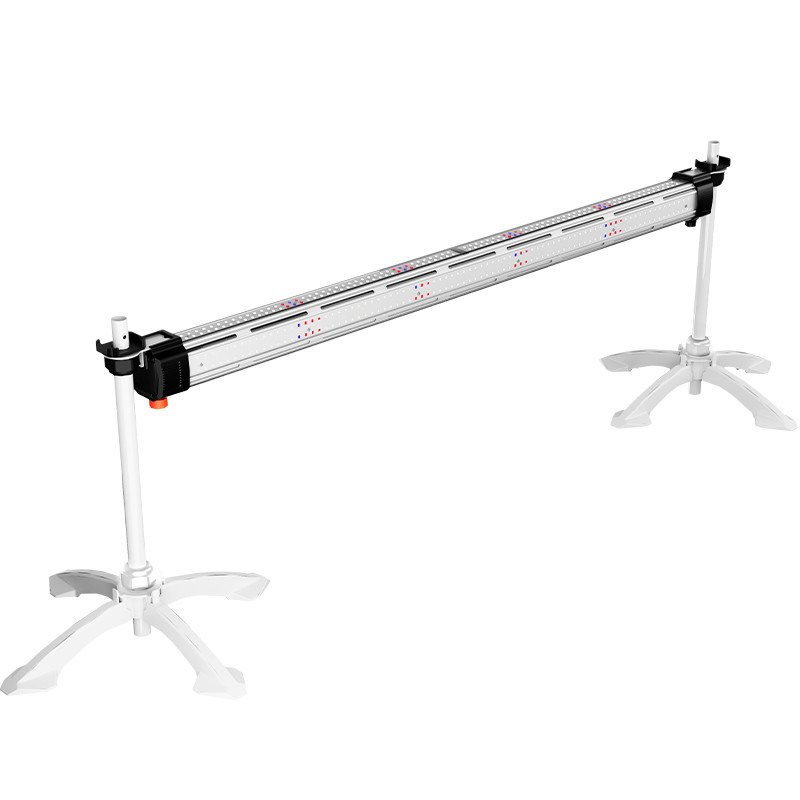

The ThinkGrow ICL-300 is a lighting solution for LED lighting solution , specifically designed to illuminate the interior of foliage in intensive indoor cultivation. Thanks to its 300° beam angle, this bar effectively corrects light deficits observed in the lower or central areas of plants, which are often underexposed by conventional overhead lighting systems.

This 120W unit comes with its own driver and features four channels of adjustable light spectrum, enabling precise lighting management according to plant requirements. Its diodes LEDpositioned on three sides, ensure extensive coverage of the plant structure when the bar is inserted into the heart of the leaf mass. In this way, the ICL-300 promotes robust flowering right down to the base of the plant, while limiting the appearance of inferior buds. Its modular design makes it easy to integrate seamlessly into any type of installation, from grow rooms to professional greenhouses and vertical growing systems.

Technical details

Model designation: ICL-300
Natureproduct: Bar LED for 4-foot (approx. 120 cm) canopy interiors
Power consumption: 120W
PPF (Photosynthetic Photon Flux): >314 µmol/s
Spectrum control: 4 separate channels (customizable spectrum)
Supply voltage: 100-277V~, 50/60Hz (automatic detection)
Light projection angle: 300°
Operating temperature range: 0 to 40°C
Maximum humidity supported: ≤ 90% RH
Estimated life: L90 > 54,000 hours
Degree of protection: IP56
Warranty: 5 years

Key benefits for growers

Optimized yield and quality: Accelerates the production of healthy flowers throughout the plant.
Superior light penetration: Ensures uniform illumination even in deep areas of the foliage.
Customized light management: 4 spectrum channels to adapt to each phase of the plant cycle.
Simplified integration: integrated driver and modular structure for rapid installation.
Increased durability: long life and excellent resistance to environmental conditions (IP56 certified).
Versatile application: ideal for grow rooms, greenhouses and vertical installations.

Further information

The main purpose of the bar LED ICL-300 is to illuminate the center of the plant canopy, an area often lacking in direct light, thus stimulating flowering in the lower parts of the plants.
Its unique feature is its ability to diffuse light over 300°, thanks to LEDs arranged on three sides, allowing lateral and lower leaf coverage, and stimulating photosynthesis in all sections of the plant.
It integrates harmoniously into a Model One system, using TLD-2 or TLD-4 drivers, and can be efficiently piloted via a TrolMaster controller for centralized control of your environment.
The bar LED ICL-300 bar boasts a remarkable service life, estimated at over 54,000 hours, maintaining at least 90% of its initial luminous flux (L90 standard).
Its IP56 certification makes it highly resistant to dust and water splashes, ensuring safe and reliable use in demanding horticultural environments.
The driver is directly integrated into the bar LEDthis greatly simplifies installation and minimizes power losses.

The ThinkGrow ICL-300 is the essential tool for ambitious growers seeking to optimize the quality and abundance of their crops, guaranteeing an ideal supply of light right down to the depths of the canopy. Raise the potential of every plant with this new-generation intra-canopy lighting solution.
