4-channel driver for Model One - 90W - TLD-4 - ThinkGrow LED

4-channel driver for Model One - 90W - TLD-4 - ThinkGrow LED

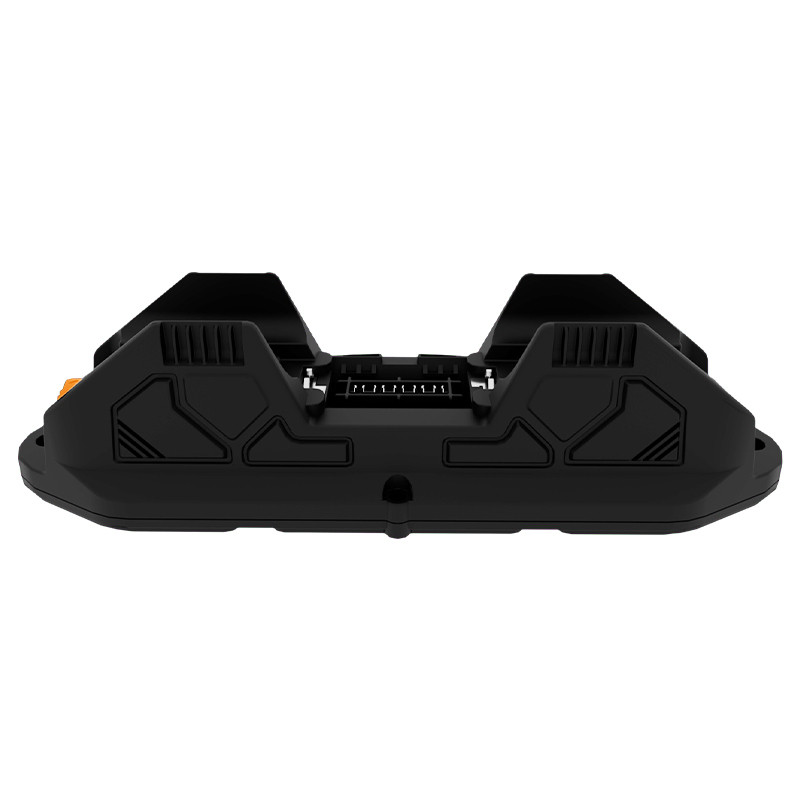

The driver LED TLD-4 driver is a 90W module designed to power a Model One LED model One range. Thanks to its 4 independent light spectrum channels, it provides predictive control of the light spectrum cis control of each spectrum band via a TrolMaster HCS or TCS controller.

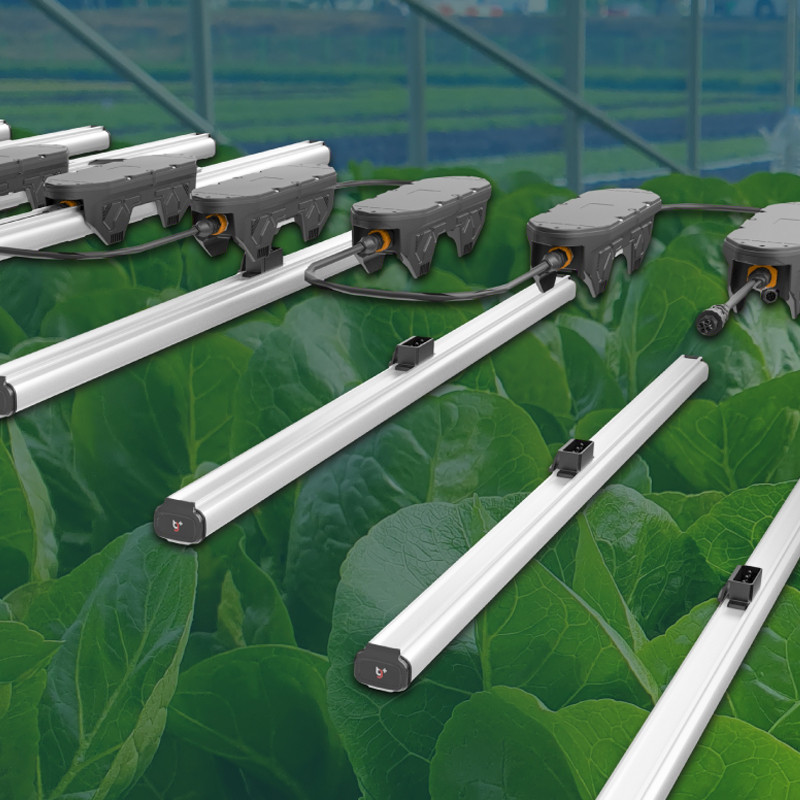

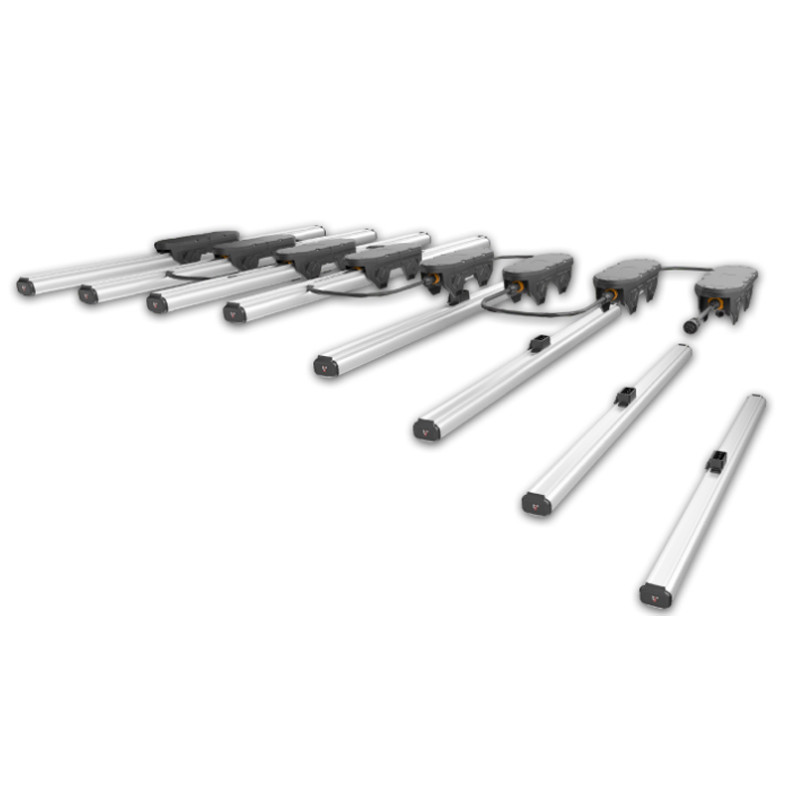

Its plug-and-play design enables rapid installation and optimum scalability. You can combine several TLD-4s to form a complete system generating up to 1400 µmol/s of luminous flux, ideal for high-yield indoor crops.

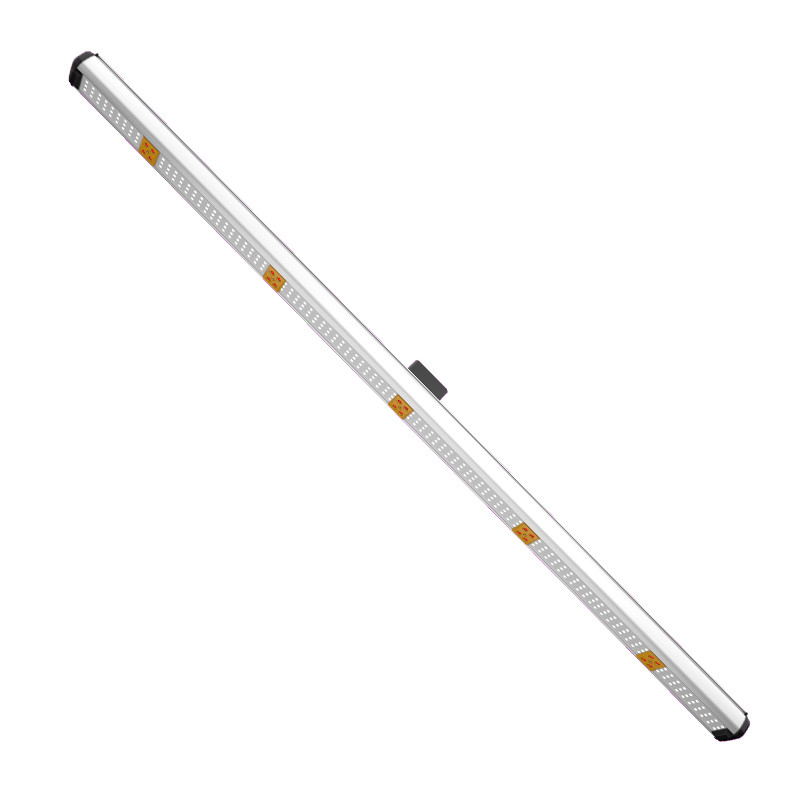

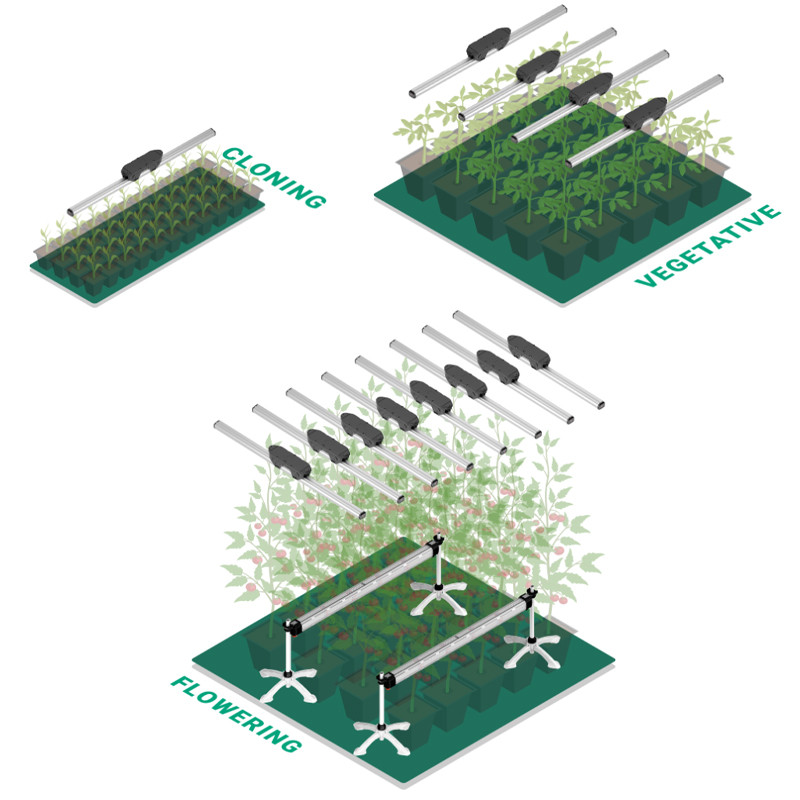

The TLD-4 is compatible with LED TLB-1 and TLB-2 lightbars, giving you a flexible solution for adjusting the light spectrum according to growth or flowering phases.

Benefits

The TLD-4 is designed for demanding growers who require LED controllable lighting. Thanks to its four independent channels, it allows fine control of intensity and spectrum. Its robustness (IP56) and compatibility with TrolMaster HCS or TCS controllers make it a professional choice for indoor horticulture.

Technical details

Model: TLD-4
Compatibility: Bars LED TLB-1 and TLB-2
Input power: 90W
Number of spectrum channels: 4 independent
Input voltage: 100-277V~ (autosensing), 50/60Hz
Connection: TrolMaster HCS or TCS
Weight: 0.92 kg
Protection rating: IP56

FAQ

What is the purpose of the TLD-4?
The TLD-4 is a driver LED 90W driver designed to power a LED ThinkGrow TLB-1 or TLB-2 with full control over 4 channels of light spectrum.

Can I connect several TLD-4s together?
Yes, you can assemble several TLD-4s to create a single system LED to suit the surface area and light requirements of your crop.

How much light can a complete system produce?
By combining several TLD-4s with bars LEDyou can achieve luminous flux of up to 1400 µmol/s, depending on the configuration chosen.

Which controllers are compatible?
The TLD-4 is compatible with TrolMaster HCS and TCS systems for remote control and customized light cycles.
