TT Pro U 315mm air extractor with thermostat - Winflex

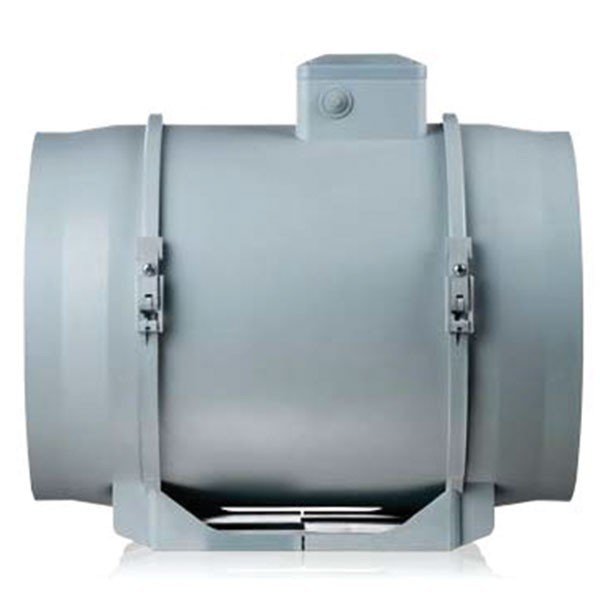

TT Pro U Ø 315mm - Winflex

Winflex is a brand specialized in ventilation.
Growshops.fr offers you their TT Pro ventilation system.

This ventilation system will allow you to introduce or extract air in order to renew the air within your grow room, as well as regulate the temperature of your space.

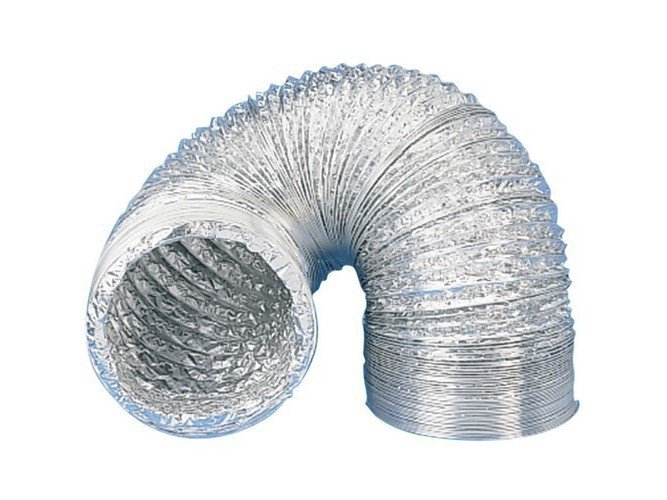

The TT range is compatible with round air ducts from Ø 100 to 315 mm, depending on the product chosen.
Initially designed for ventilation of bathrooms, wet rooms, apartments etc... The TT range will fit perfectly into any grow room, from the smallest to the largest grow tent.

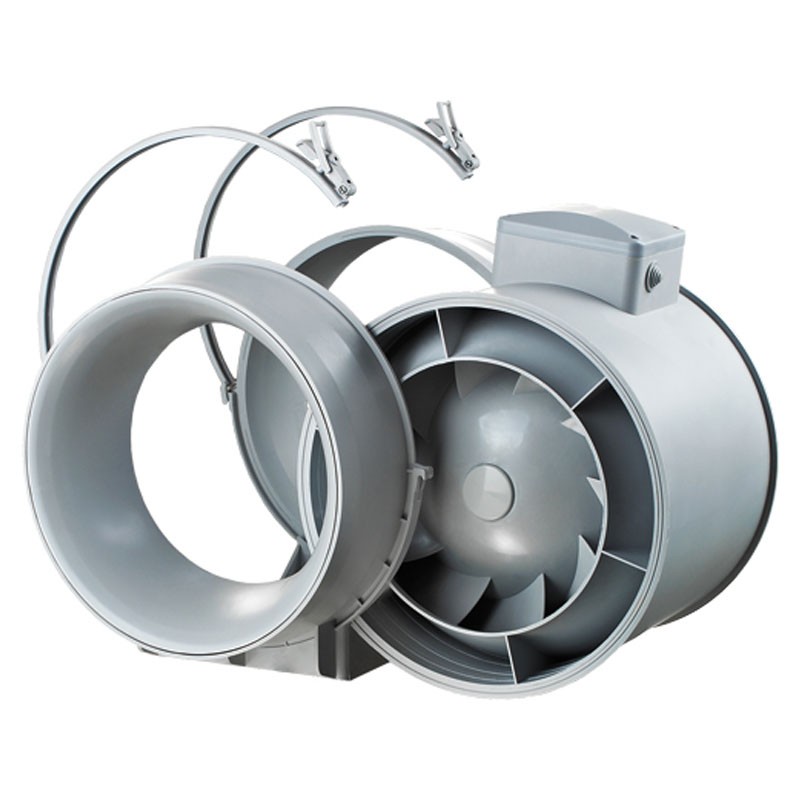

The TT Pro pushes the capabilities of the TT range with a hemisphere-shaped rotor and specially profiled blades that increase the circular velocity of the airflow and deliver higher pressure and power than standard in-line fans.
The diffuser, specially profiled rotor and steering vanes distribute the airflow at the extractor outlet in such a way as to achieve the best combination of high performance, enhanced pressure and low noise.

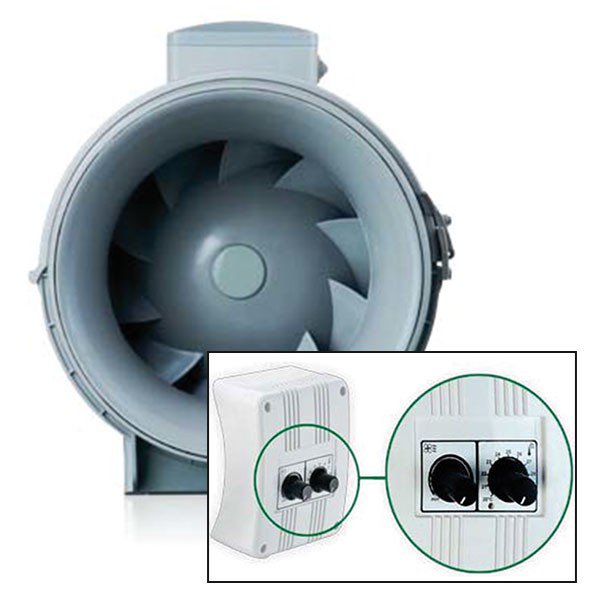

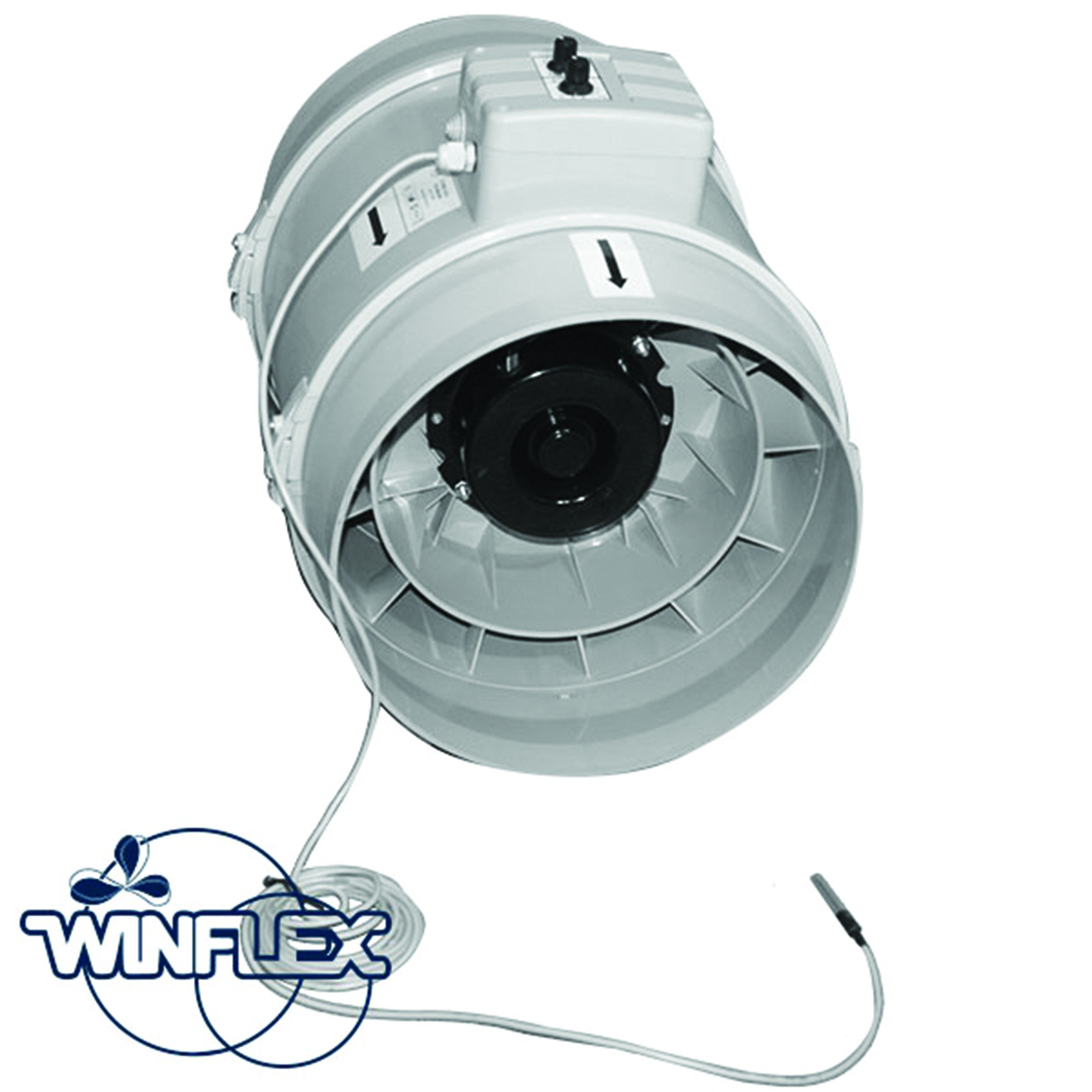

A special feature of the TT Pro U range is its electronic thermostat and remote temperature sensor 3m sensor for temperature-dependent operation.

If you're looking for high ventilation performance, the TT Pro U range is for you!

TT Pro U Ø315mm specifications:
Inlet and outlet diameter: Ø 315 mm
Minimum airflow: 1570^m3/h
Maximum airflow: 2050^m3/h
Power: 230 to 320 Watts depending on airflow selected

All technical specifications of Winflex TT Pro U extractors:

All dimensions of Winflex TT Pro extractors:

Case studies :

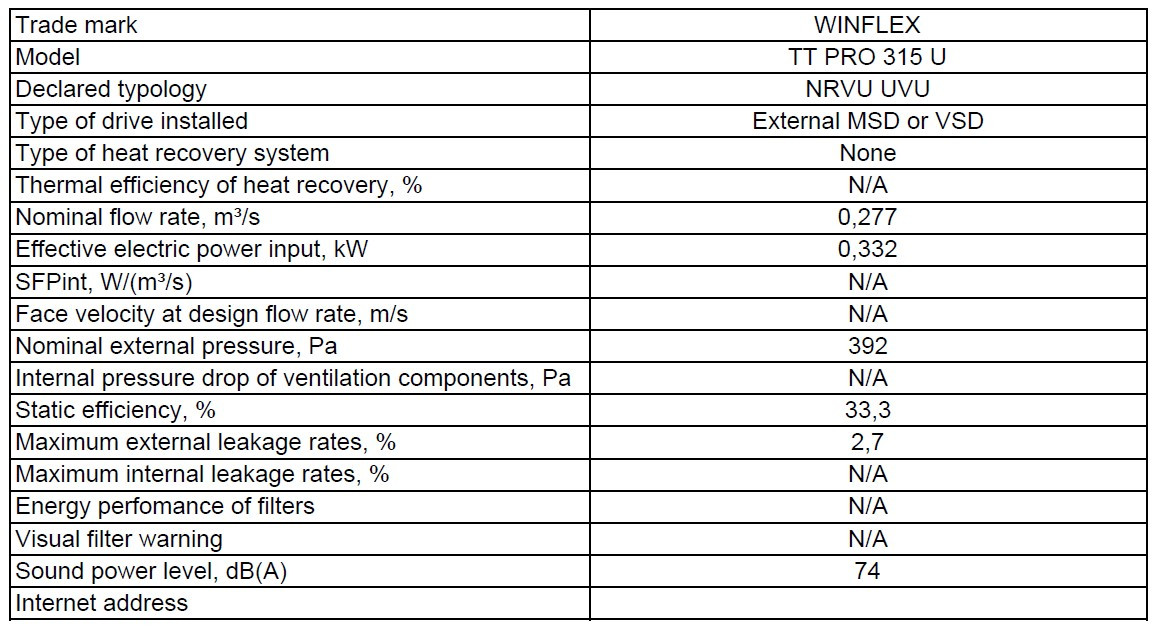

ERP features: (pictured)

The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa in accordance with EN13141-7:2010
