Air Exctractor VKOM 315mm 1700m3/h - Winflex ventilation

Application
VKOMs are combined supply/exhaust ventilation systems for spaces where high air capacity is required.

Design
Winflex VKOM units are made of steel with a robust polymer coating thanks to its metal armor. The terminal box is external, connected by a cable to keep it at a distance.

Motor
The asynchronous motor features thermal overheating protection with automatic restart.
Motor protection: IP44.

Installation

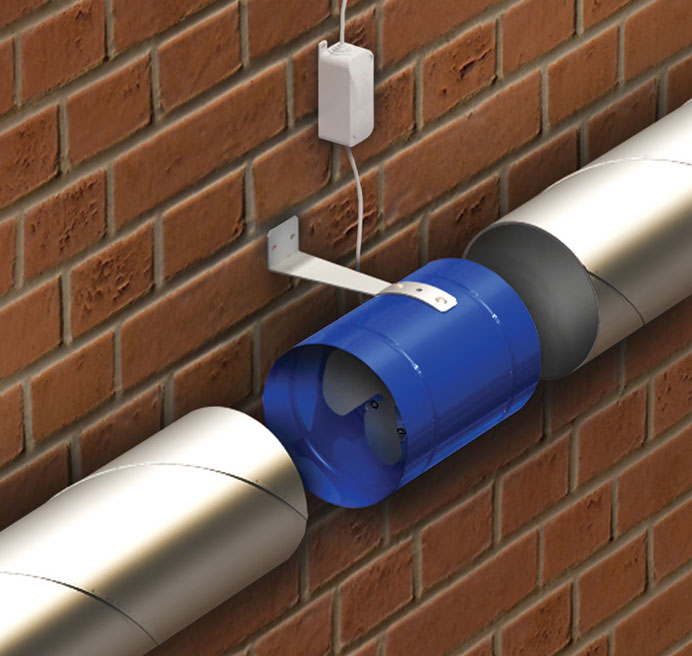

The VKOM can be installed in the duct using the brackets or directly inside the wall.

Dimensions

Technical features of the VKOM range

VKOM 315 specifications

Voltage: 230V - 50 Hz
Power rating: 110W
Max. flow: 1700m3/h
Noise level at 3 meters: 54dBA
Outlet diameter: 315 mm
Protection rating: IP X4

Setting the scene :

ERP features: (pictured)

The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa in accordance with EN13141-7:2010
