€750.00
Soundproof box with air extractor 6000 m3/h - Flange 250mm - Winflex
€750.00
Loyalty
By buying this product you can collect up to 75 loyalty point(s), which can be converted into a voucher of €15.00.
Free delivery from €59.00 in France
At home from : Thursday 20/06/2024 see details

Product details

Sono-Box Wood Winflex Soundproof Ventilation box with dimensions 750 x 750 x 750mm.
Very quiet product thanks to its S-vent motor.

Supplied complete (with anti-vibration suspension rings) and ready to plug in.

Technical specifications:
Sound level: 54.4 dB
Housing dimensions: 750 x 750 x 750 mm
Flow rate: 6000m3/h
Flange inlet / outlet: 2 x 250 mm + 1 x 315 mm
Maximum power: 1400 W
Minimum power: 650 W
Maximum current: 9 A
Minimum current: 3.7 A

1 year warranty

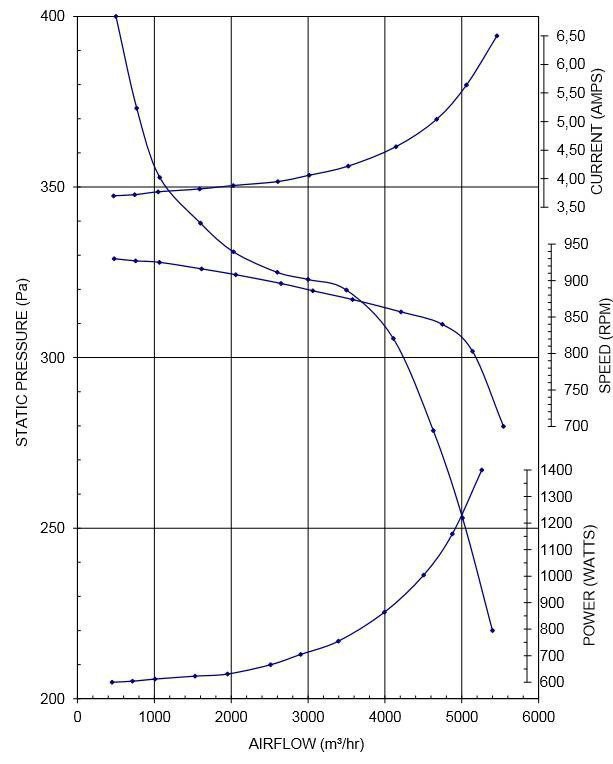

Load diagram :

datasheet

Name Soundproof box with air extractor 6000 m3/h - Flange 250mm - Winflex
Brand Winflex
Eco-contribution (€) 5
Air flow 1501 to 7000 m3/h
Output diameter (mm) 315
Inlet diameter (mm) 250
Country of manufacture NETHERLANDS
Tri des déchets

Notice
