LED horticultural - Model H Plus - 720W - 28 µmol/J - ThinkGrow

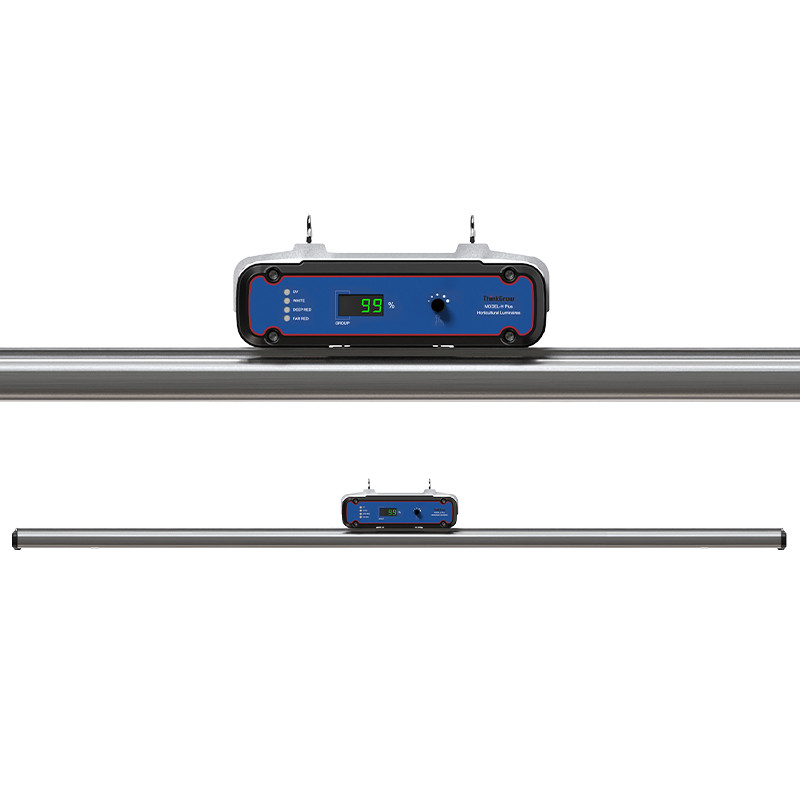

Horticultural lamp LED ThinkGrow Model-H Plus 720W - Performance LED performance for indoor cultivation

The ThinkGrow Model-H Plus 720W is a professional LED 720W grow light , specially designed for indoor grow rooms and PPFD high-density vertical grow systems. Its 127 cm (5 ft.) wide design ensures extensive coverage and powerful, even light distribution. Equipped with 3368 Samsung LM301B and LH351H (660 nm) diodes, it offers exceptional luminous efficacy of 2.8 µmol/J at a total power of 720 watts. The result: a photosynthetic photon flux (PPF) in excess of 2016 µmol/s, an 18% improvement over previous models, guaranteeing maximized yields.

Technical details

Spectrum adjustable at will: Independent control of 4 channels (UV, full white, deep red, far red)
Onboard adjustment system: Integrated intensity control
Patented design: Bars LED for easy installation and maintenance
Grouped control: Up to 256 units per channel with TrolMaster HCS-2/3 controllers
High-quality diodes: 3368 Samsung LM301B and LH351H diodes (660 nm)
Exclusive Samsung partnership: Pledge of quality and innovation

Benefits

Optimized yields and quality: thanks to adjustable spectrum and high PPF
Simplified installation and maintenance: Plug & Play design, no tools required
Preliminary controlcis and versatile control: Independent management of spectral channels for customized lighting recipes
Energy savings: Luminous efficiency of 2.8 µmol/J
Optimum coverage: 127 cm wide design for even distribution
Reliability and durability: 5-year manufacturer's warranty and L90 lifetime > 54,000 hours

Technical specifications

Power: 720 W
Efficiency: >2.8 µmol/J
PPF: >2016 µmol/s
Number of diodes: 3368 (Samsung LM301B + LH351H 660 nm + UV/Far Red)
Spectra: UV, White (Full Spectrum), Deep Red, Far Red - independently adjustable
Dimensions: 145 cm (L) x 113 cm (W) x 11.2 cm (H)
Weight: 19 kg
Installation height: > 15.2 cm above canopy
Input voltage: 100-277 V (autosensing)
Current consumption: 6.23 A @ 120 V / 3.09 A @ 240 V / 2.71 A @ 277 V
Service life: L90 > 54,000 hours
Protection rating: IP56
Power factor: ≥ 96%
Warranty: 5 years manufacturer

Extended functionality

Compatible with TrolMaster HCS-2/3 controllers (for independent control of all 4 spectral channels)
Modular Plug-and-Play design for rapid tool-free installation
Networked control via Hydro-X Plus and Hydro-X Pro
Centralized management ideal for professional environments
Grouped control of up to 256 units per channel

The ThinkGrow Model-H Plus 720W is an essential choice for any demanding grower, concerned with the quality of his crops and the control of his lighting parameters. Its official partnership with Samsung attests to the superior quality of its diodes and its commitment to providing the LED horticultural products on the market. Over 90% of diodes are full-spectrum white, guaranteeing professional results. Investing in the ThinkGrow Model-H Plus 720W means choosing reliability, performance and innovation for your indoor cultivation, for successful, long-lasting harvests.
