Inline air extractor V-12 - Ø 315mm - 2000m3/H - Aero-Fan

Aero-Fan V-12M Pro inline air extractor - Ø 315mm, 2000m³/h

Designed for high-volume ventilation systems, the Aero-Fan V-12M Pro is a state-of-the-art inline fan. With a diameter of 315 mm (12 inches), a robust motor and 8 blades, it generates an impressive airflow of 1180 CFM, or around 2000 m³/h. This ensures fast, efficient evacuation of humidity and odors, making this unit perfect for large indoor grow rooms.

This model is fully compatible with TrolMaster controllers for intelligent control, and comes with a mounting plate for easy installation in all types of ductwork. TheAero-Fan V-12M Pro is the ideal choice for indoor growers looking for efficiency, reliability and flexibility in their ventilation system.

Key benefits

Colossal airflow: Up to 2000 m³/h for maximum air renewal.
Ideal for large spaces: Perfectly suited to large grow rooms.
Intelligent management: Full compatibility with TrolMaster controllers for complete automation.
Easy installation: Mounting plate included for fast, flexible set-up.
Durable performance: Robust motor and reliable design for long life.
Climate optimization: Rapid extraction of humidity and odors for a healthy environment.

Detailed features

Yes, the V-12M Pro is fully compatible with TrolMaster controllers, enabling automatic, intelligent management of fan speed, adapting precis
Absolutely. With a flow rate approaching 2,000 m³/h, this extractor is ideal for large cultivation areas, where consistent and rapid air renewal is absolutely essential to maintain optimum conditions.
Yes, speed regulation is possible. If you use a compatible controller, the speed can be adjusted automatically or manually, depending on the specific needs of your crop.
Installation is greatly simplified. The extractor comes with a mounting plate, enabling rapid installation on standard ducts. It also offers the flexibility of being suspended or mounted on a wall or ceiling.
Despite its high power, the V-12M Pro is designed to minimize vibration and noise. As a result, it offers superior sound comfort compared to conventional extractors of equivalent caliber, even when operating at full speed.

Main details

Inlet/outlet diameter: 315 mm (12")
Maximum airflow: 1180 CFM ≈ 2000 m³/h
Operating voltage: 100-277 VAC, 50/60 Hz (automatic detection)
Maximum power consumption: 268 W
Maximum current: 2.6 A
Number of blades: 8
Maximum static air pressure: 779 Pa
Protection rating: IP44 (water and dust resistant)
Operating temperature: -20 to +60°C
Mean life time (MTTF): 50,000 hours (at 25°C)

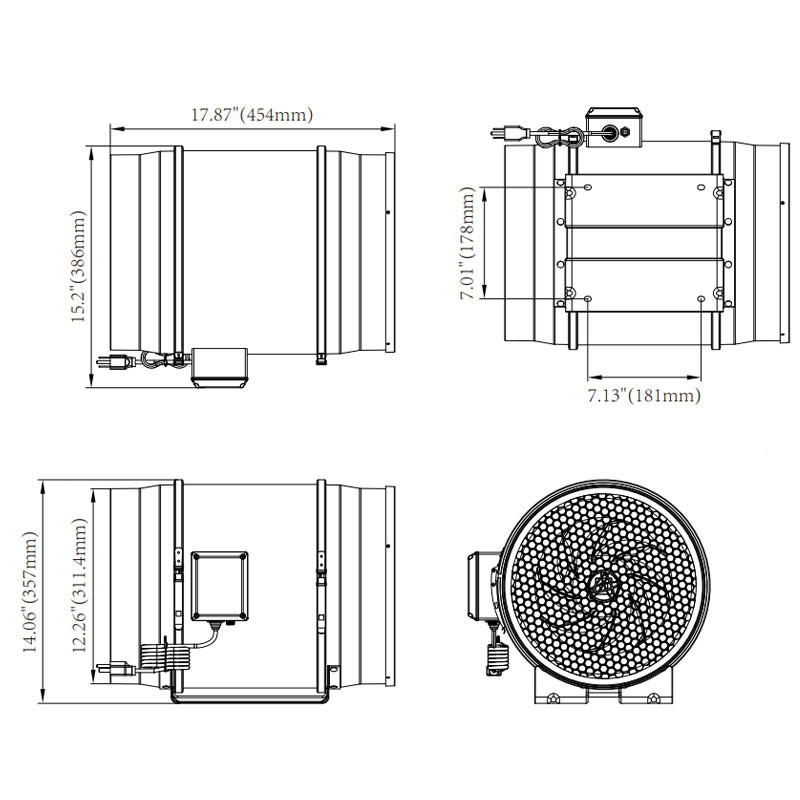

Dimensions: 45.4 x 35.7 x 31.1 cm
Net weight: 8.0 kg

Includes

1 x Aero-Fan V-12 inline extractor - 315 mm
1 x Mounting plate
1 x Operating manual

The Aero-Fan V-12M Pro extractor is the ideal investment for demanding growers. It guarantees precis and powerful control of your grow room environment, ensuring optimum conditions for abundant, top-quality harvests.
