QuietLine 150mm extractor 285 to 375 m3/h - Winflex ventilation

QuietLine Ø 150mm - Winflex

Winflex is a brand specialized in ventilation.
Growshops.co.uk offers you their QuietLine ventilation system.

This ventilation system will allow you to introduce or extract air in order to renew the air within your grow room, as well as regulate the temperature of your space.

This model has a high-speed motor that allows you to choose between two speeds.

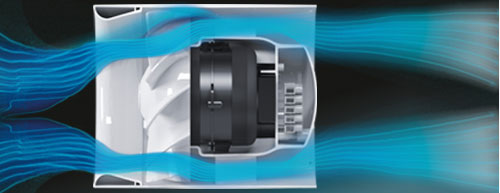

The housing and impeller are made of durable, high quality plastic. The exhaust valve is equipped with specially designed air flow straighteners to reduce air turbulence, noise level and increase air pressure.
The impeller design improves fan efficiency and ensures low fan noise operation.

The QuietLine will fit perfectly in any grow room from small to large grow tent.
Equipped with two speeds.

Operation:

- Cold ball motor with a low power demand of 4.5 W.
- Equipped with a single-phase or two-speed motor.
- Built-in thermal overheat protection to prevent motor overheating.
- Motor on rubber anti-vibration connectors to ensure low noise operation of the fan.

Mode 1: Fan is disabled by default. Fan starts running at low speed when switch is closed.
Mode 2: The fan is disabled by default. The fan starts to run at high speed when the switch is closed.
Mode 3 (two-speed mode): Fan runs at low speed by default. Fan switches to high speed when switch is closed.

QuietLine 150 Features:

Inlet and outlet diameter: Ø 150 mm
Length: 182 mm
Minimum airflow: 285^m3/h
Maximum airflow: 375^m3/h
Power: 22 to 25 Watts depending on the selected airflow
Noise level at 3 m: 36 to 41 dB
Weight: 1.30 Kg
IP protection X4

Examples of installations :

Attention: cables and power plug not included in the scope of supply but available here.

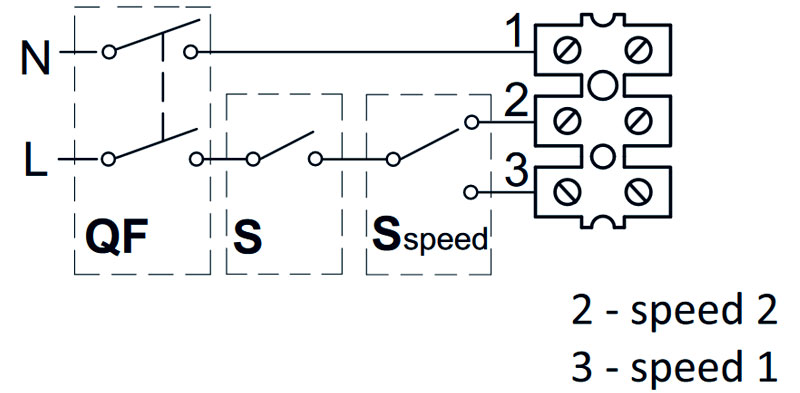

QuietLine connection diagram:

ERP characteristics: (in photo)

The technical parameters on the ErP energy label and the declaration of performance (DoP) are listed for fan operation at an external pressure of 100 Pa according to EN13141-7:2010
